An Attempt at Paint-by-Numbers - Part 2

Posted on January 1st, 2025

Let's recap where this epic tale halted: we have a saturated, color-reduced, brush-stroked image that we want to transform into a "Paint by Number" composition. The main challenge is the abundance of small regions—if we leave them as is, the final result will be a mess of tiny pixel areas, nearly impossible to label or paint.

Attempt 1 - Morphological Transformations

After conferring with my genius bird photographer brother, he recommended Morphological Transformations - fundamental operations in image processing that are used to manipulate the structure of an image by altering its "shape" (hence morphological). To apply them, one needs a binary image (black and white) and a "structuring element" (a kernel).

There are two essential transformations and two that combine them:

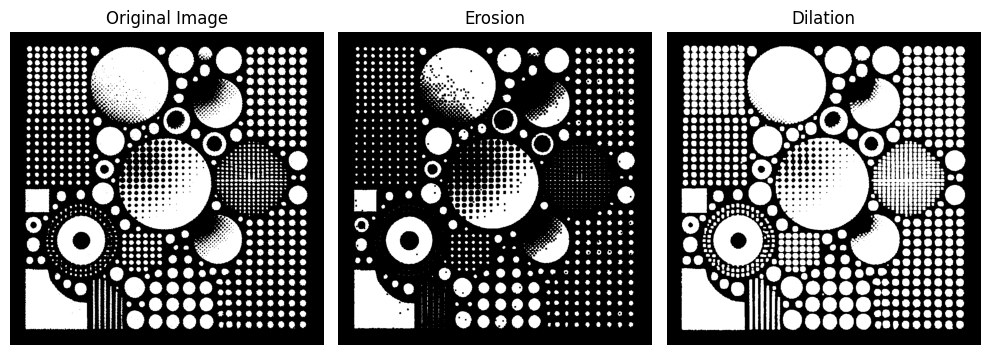

Let's visualize it to make more sense of the transformations.

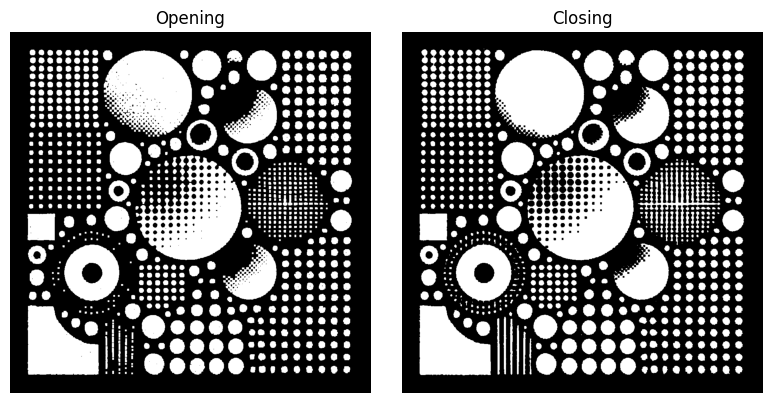

Erosion and dilation are relatively straightforward. Opening and closing can be trickier, so think of them in terms of their base transformations:

This problem seems suspiciously likely to benefit from an opening operation that removes small pixels and regions. Because morphological transformations require grayscale images, you must apply them to the Value channel in HSV. Then, merge the transformed Value channel back with the original Hue and Saturation channels. The result of this merge might produce color mismatches across channels, so one way to return to a 16-color palette is by assigning each pixel to the nearest color, as in part 1.

def applyMorphologicalTransformationHSV(image, KERNEL_SIZE=3, ITERATIONS=3):
    # Convert to HSV color space
    hsv = cv2.cvtColor(image.astype(np.uint8), cv2.COLOR_RGB2HSV)
    h, s, v = cv2.split(hsv)

    kernelSize = (KERNEL_SIZE, KERNEL_SIZE)
    kernel = cv2.getStructuringElement(cv2.MORPH_ELLIPSE, kernelSize)

    # Apply morphological operations to the Value channel
    eroded = cv2.erode(v, kernel, iterations=ITERATIONS)
    dilated = cv2.dilate(eroded, kernel, iterations=ITERATIONS)

    # Merge channels back
    hsvProcessed = cv2.merge([h, s, dilated])
    processedImage = cv2.cvtColor(hsvProcessed, cv2.COLOR_HSV2RGB)

    return processedImage

def mapColorsToPalette(image, palette):
    # Reshape image for efficient color mapping
    h, w, c = image.shape
    reshaped_image = image.reshape(-1, 3)

    # Use KDTree for efficient nearest neighbor search
    tree = KDTree(palette)
    _, indices = tree.query(reshaped_image)
    closest_colors = palette[indices]

    # Reshape back to original image dimensions
    mapped_image = closest_colors.reshape(h, w, 3)
    return mapped_image

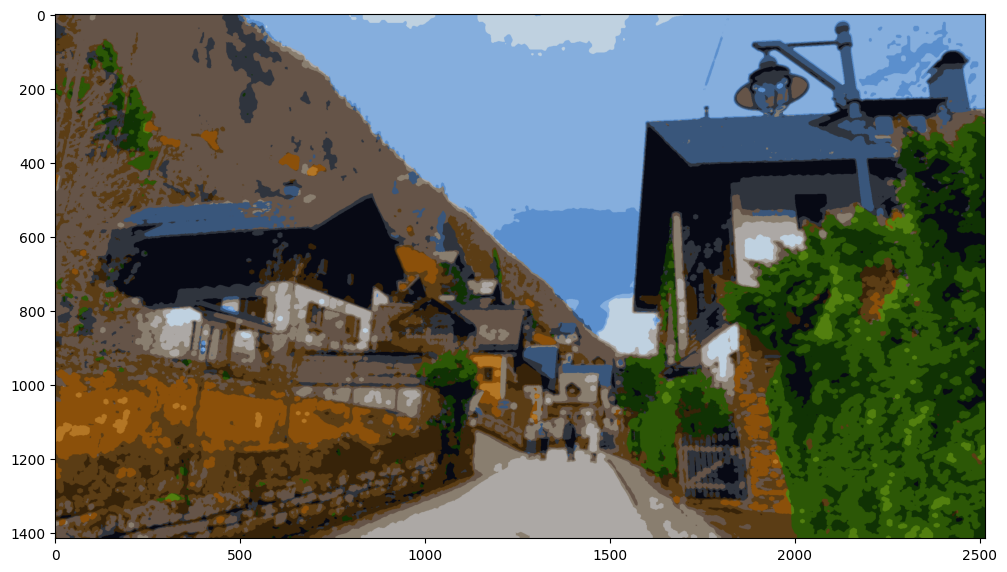

Below is the image after applying the transformation. Different iterations and kernel sizes will produce varying outcomes—there's a balance between "clean regions" and "image definition." Enlarging the kernel size creates more uniform areas but makes the image less recognizable.

Ok, so did this work? Long story short: no. After applying the same connected components method from part 1, the resulting image has a lot more than 1000 regions. Increasing the kernel size reduces the region count but reduces detail so much that the image barely resembles the original.

Attempt 2 - Brute Force?

The thinking now is: if there is a way to find every region (and there is, using connected components), one could iterate through every region, calculate the region area and, if the area is smaller than a threshold, fill that area with the dominant color outside the area. In pseudocode:

This poses some challenges, the main one being the processing speed. First of all, finding the connected components for each of the 16 colors is already a slow operation. Additionally, this image is 1440 x 2560 pixels in RGB - nearly 3.6 million pixels per channel. That scale can become computationally intensive.

A naive approach (nested loops, full-array processing) took more than 10 minutes per color, though results were promising. Optimizing the procedure led to much faster performance:

The final code looks like this:

def processSingleColor(image, color, minArea=500, margin=5):
    h, w, c = image.shape
    # Create a binary mask for the current color
    colorMask = np.all(image == color, axis=-1).astype(np.uint8)

    # Find connected components in the binary mask
    numLabels, labels, stats, centroids = cv2.connectedComponentsWithStats(
        colorMask, connectivity=4
    )

    # Collect small regions
    smallRegions = []
    for i in range(1, numLabels):
        area = stats[i, cv2.CC_STAT_AREA]
        if area < minArea:
            x, y, wr, hr, _ = stats[i]
            # Add margin to the bounding-box
            x0 = max(x - margin, 0)
            y0 = max(y - margin, 0)
            x1 = min(x + wr + margin, w)
            y1 = min(y + hr + margin, h)
            # Collect the region data
            smallRegions.append(
                {
                    'label': i,
                    'bbox': (x0, y0, x1, y1)
                }
            )

    return {"color": color, "smallRegions": smallRegions, "labels": labels}

def processSmallRegion(image, labels, regionInfo, color):
    label = regionInfo['label']
    x0, y0, x1, y1 = regionInfo['bbox']

    # Extract the sub-image
    subImage = image[y0:y1, x0:x1].copy()

    # Extract the sub-region mask
    subLabels = labels[y0:y1, x0:x1]
    regionMask = (subLabels == label).astype(np.uint8)

    # Create the mask for the dilated region
    kernel = cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3))
    dilatedRegionMask = cv2.dilate(regionMask, kernel, iterations=1)
    borderMask = dilatedRegionMask & (~regionMask)

    # Get surrounding pixels
    surroundingPixels = subImage[borderMask.astype(bool)]

    # Exclude pixels that match the region color
    mask = ~np.all(surroundingPixels == color, axis=1)
    surroundingPixels = surroundingPixels[mask]

    if surroundingPixels.size == 0:
        dominantColor = color
    else:
        surroundingPixelsTuples = [tuple(pixel) for pixel in surroundingPixels]
        dominantColor = Counter(surroundingPixelsTuples).most_common(1)[0][0]

    return {
        "coordinates": [x0, y0, x1, y1],
        "regionMask": regionMask,
        "dominantColor": dominantColor
    }

def getRegionsParallel(image, palette, minArea=500, margin=5):
    regions = []
    with ThreadPoolExecutor() as executor:
        futures = [
            executor.submit(processSingleColor, image, color, minArea, margin)
            for color in palette
        ]
        for future in futures:
            regions.append(future.result())

    return [
        {"color": color["color"], "labels": color["labels"], "regionInfo": region}
        for color in regions
        for region in color["smallRegions"]
    ]

def getUpdatesParallel(image, regions):
    updates = []
    with ThreadPoolExecutor() as executor:
        futures = [
            executor.submit(processSmallRegion, image, region["labels"], region["regionInfo"], region["color"])
            for region in regions
        ]
        for future in futures:
            updates.append(future.result())

    return updates

def fillSmallRegions(image, palette, minArea=500, margin=10):
    regions = getRegionsParallel(image, palette, minArea=minArea, margin=margin)
    updates = getUpdatesParallel(image, regions)

    filledImage = image.copy()
    # Apply the updates to the original image
    for update in updates:
        x0, y0, x1, y1 = update["coordinates"]
        regionMask = update["regionMask"].astype(bool)
        dominantColor = np.array(update["dominantColor"], dtype=filledImage.dtype)

        # Apply dominant color to the masked area
        filledImage[y0:y1, x0:x1][regionMask] = dominantColor

    return filledImage

Ultimately, each color is searched in parallel to find connected components - any region smaller than a MIN_AREA parameter is collected, along with its bounding-box. Each region is also processed in parallel: the bounding-box is used to copy that area from the original image, a mask is created, and a dilation operation is used to discover the dominant surrounding color. Once computed, all updates are applied to the image. Although parallelizing this final update step is trickier (due to concurrent memory access), a single loop is usually fast enough.

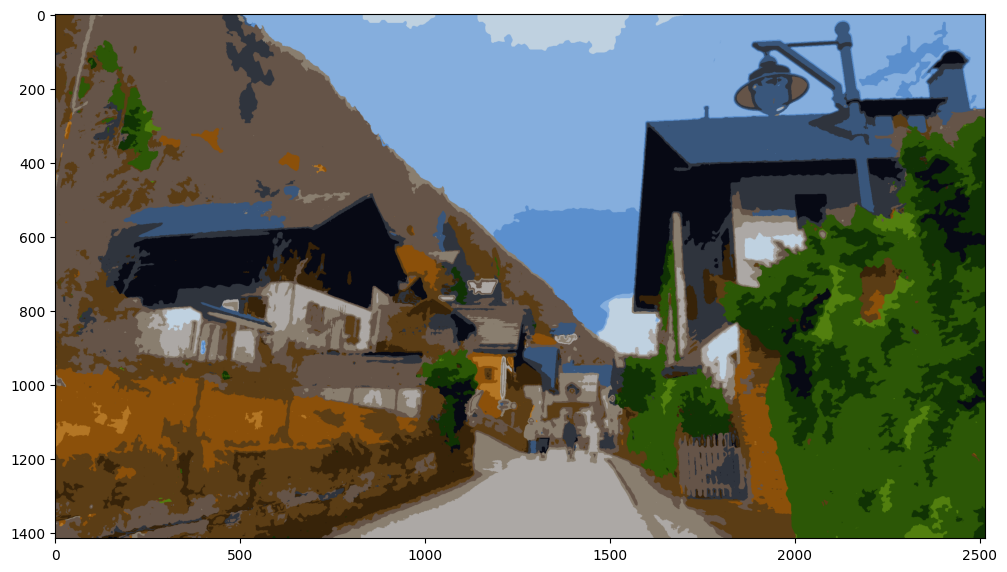

Final processing time: 3.6 seconds. The result speaks for itself:

This is really good. Small regions are gone and the image preserved its shape. Maybe a Paint by Number image is a few steps away?

Maybe Paint By Number

Generating the final Paint by Number is straightforward: use connected components to find regions, label each color (e.g., green = 1, light green = 2, etc.), compute each region’s center to place the color index, and draw contours.

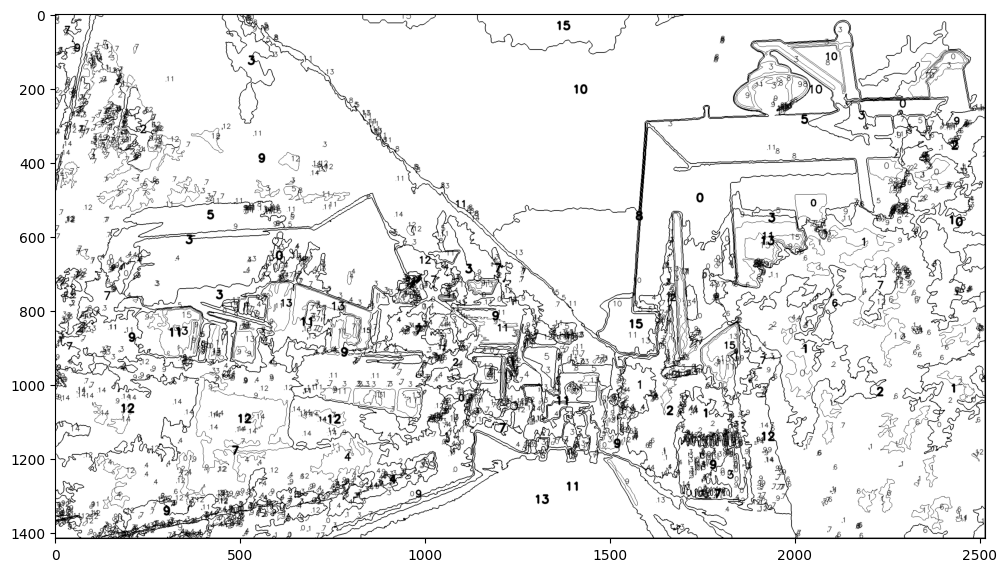

Let's skip this code for now, because we still have a problem. This is the result:

A couple issues and the plan to solve them:

In part 3, we’ll dive deeper to refine these methods and tackle the remaining challenges. And until that, let us pray.
